Compatable Hardware

LPC Xpresso 1769 from NXP

This is my personal favorite. It's cheaper, but more versatile, but a lot more work to put together. (You enjoy hacksaws and soldering irons, right?)

The LPCXpresso 1769 comes in a plain paper envelope. (To protect my privacy?)

and here it is:

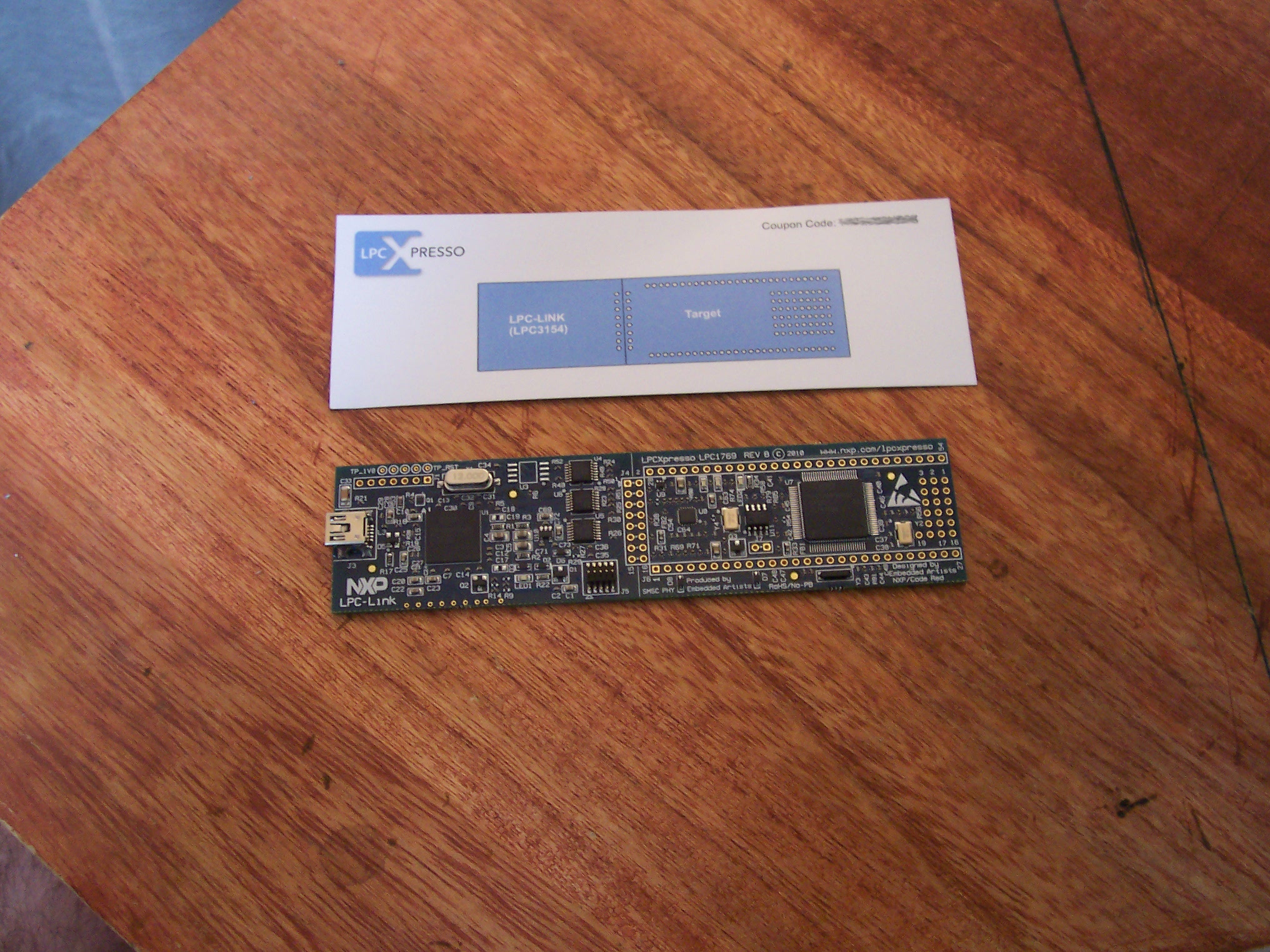

The LPCXpresso LPC1769

The board is made in two halves: the left half is the JTAG programmer, the right half is the board itself. The left half does not work with any Linux / Open-source tools; ie: it is worthless. We will cut it off with a hacksaw.

Yes, really.

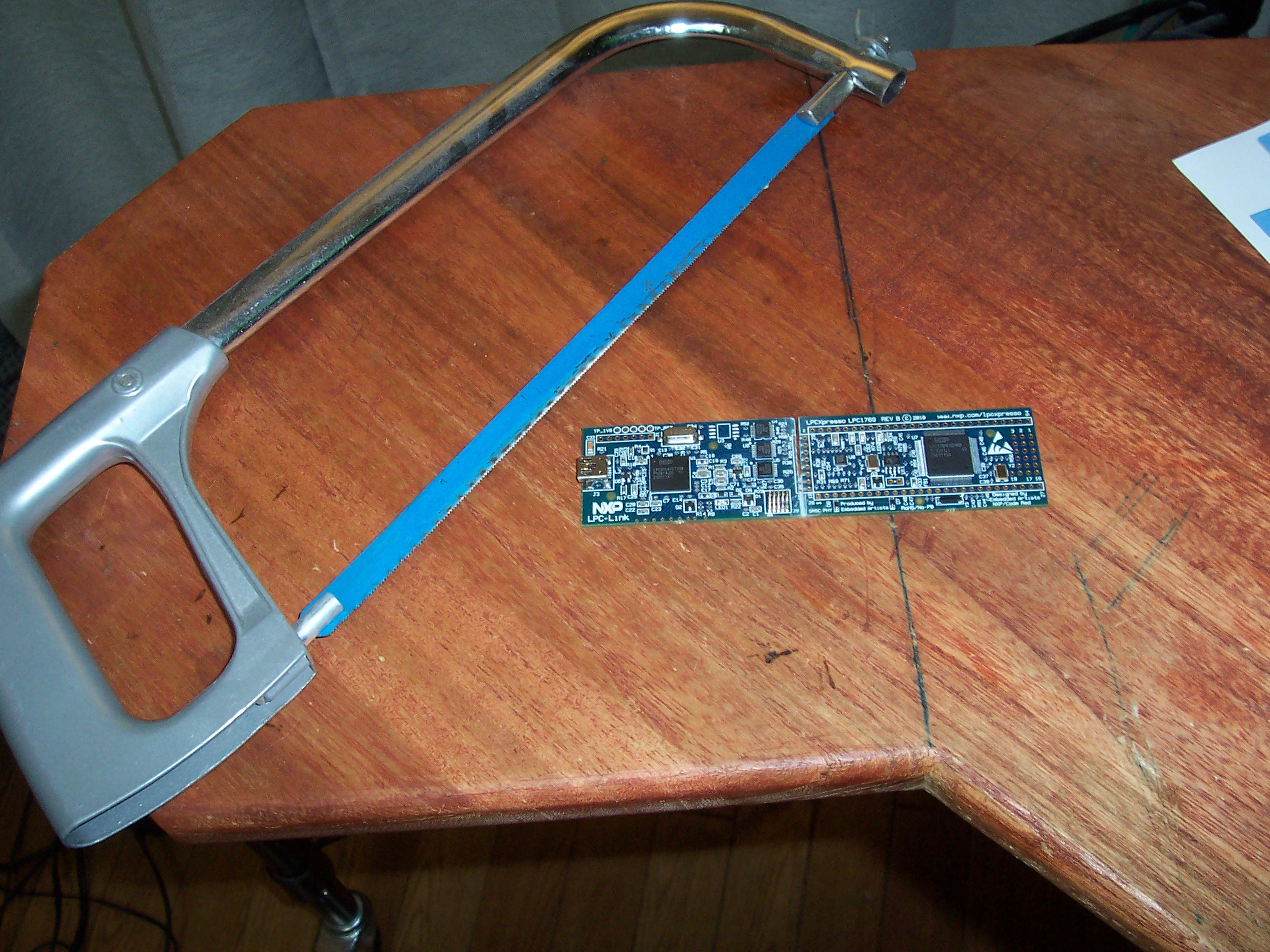

Using a hacksaw to remove excess hardware.

Make sure to cut to the JTAG side, and away from the LPCXpresso itself:

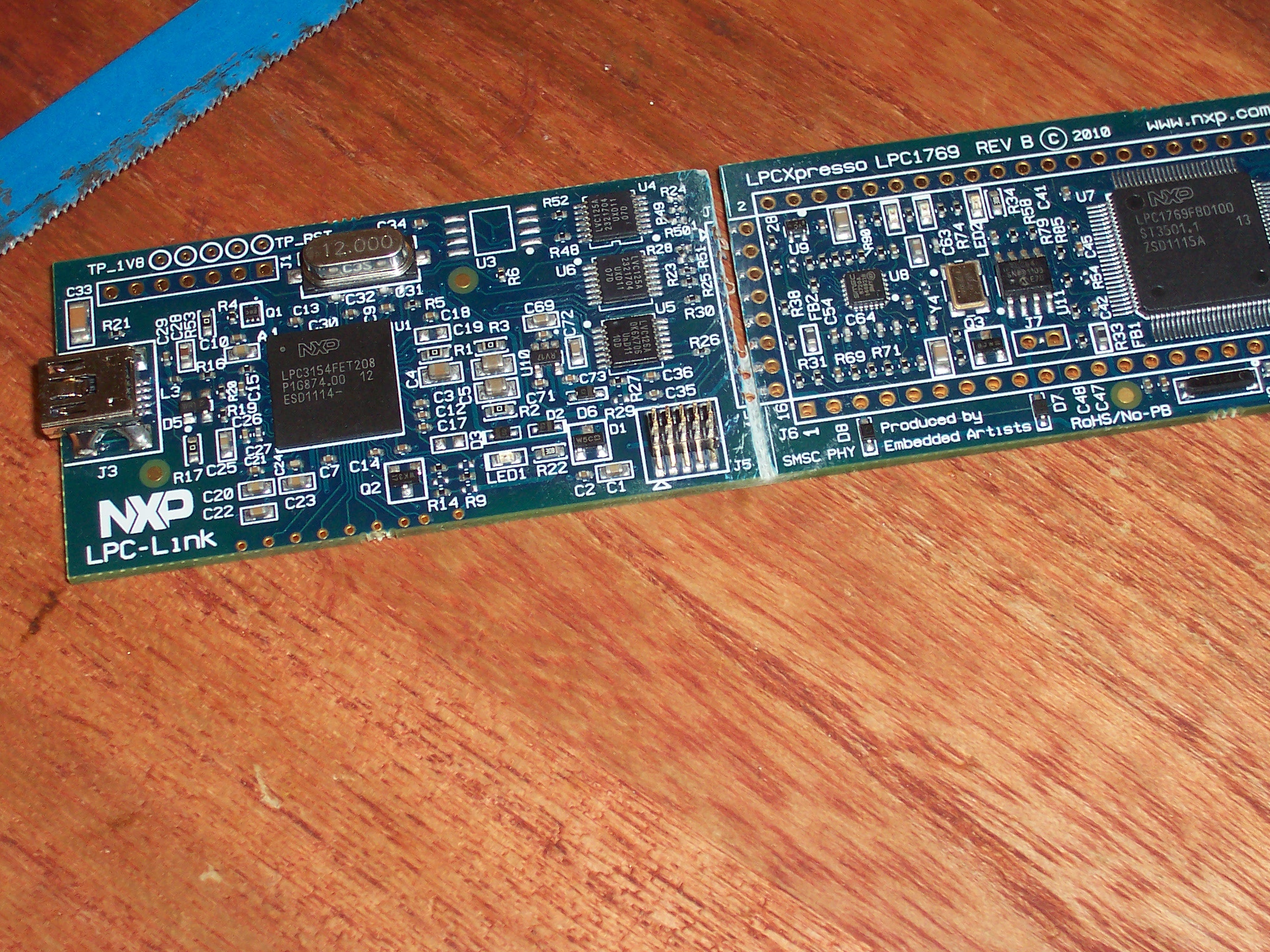

Board is mostly cut

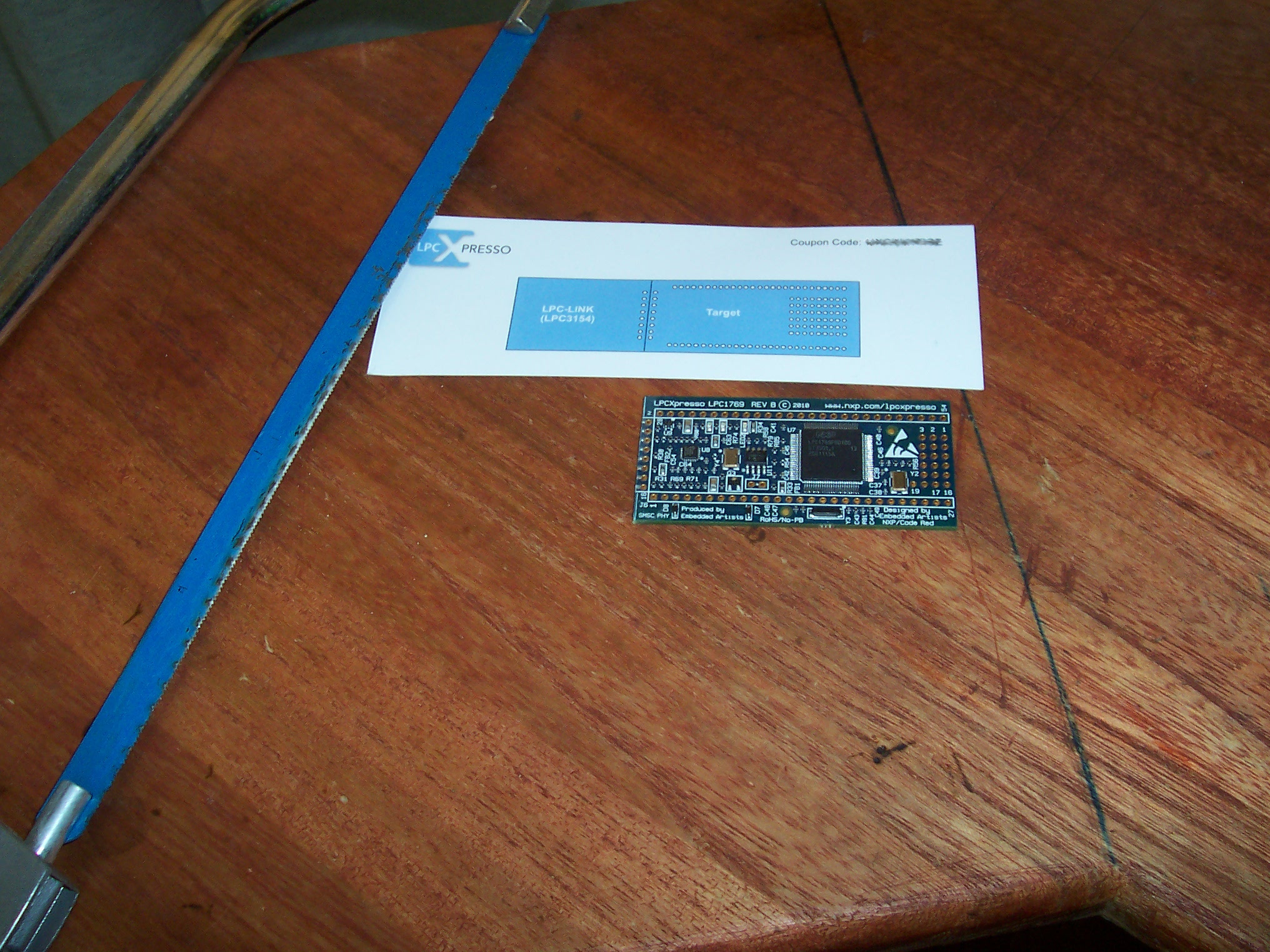

Board has been cut

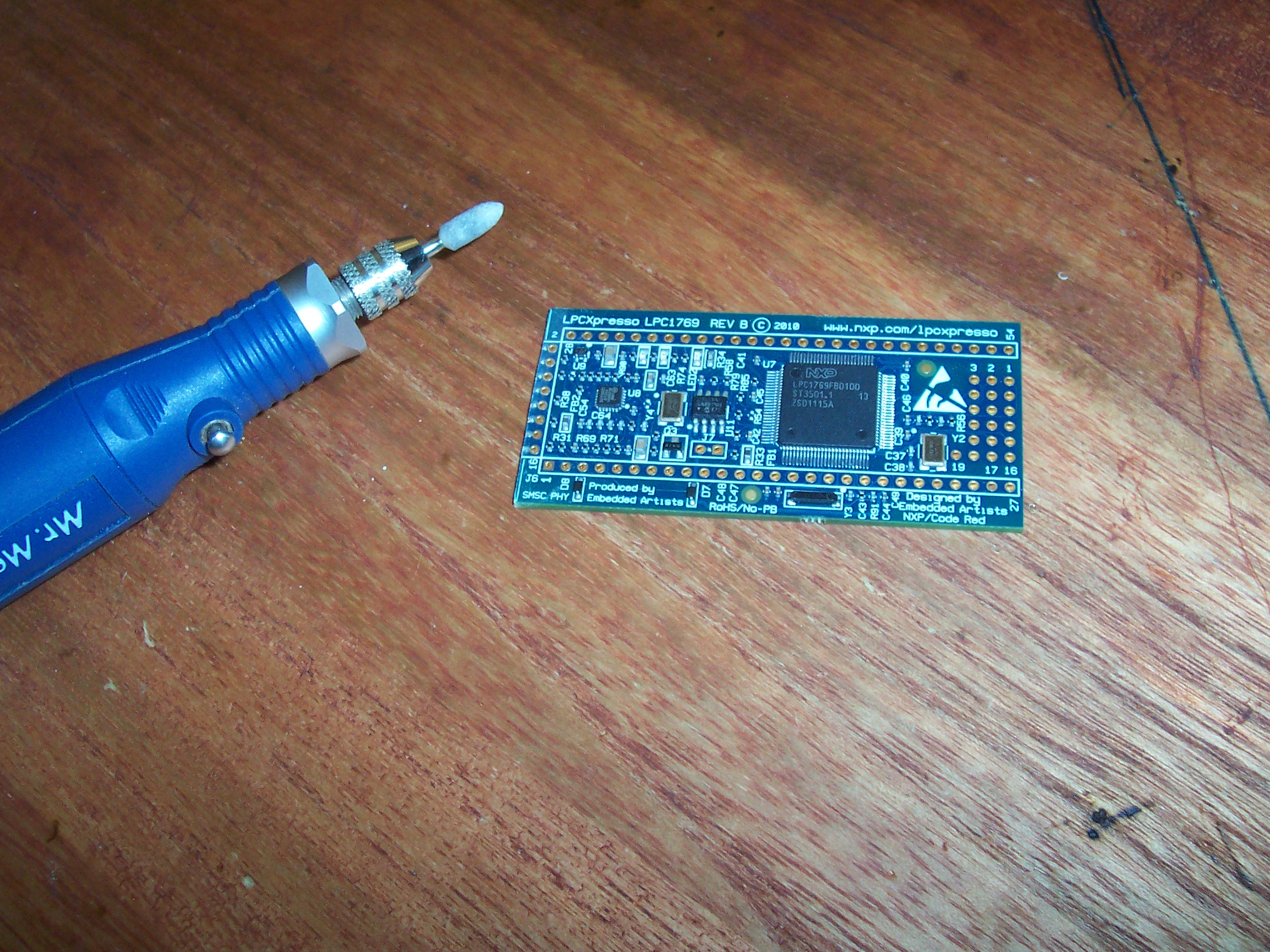

We will touch it up with a dremel tool and a flat file:

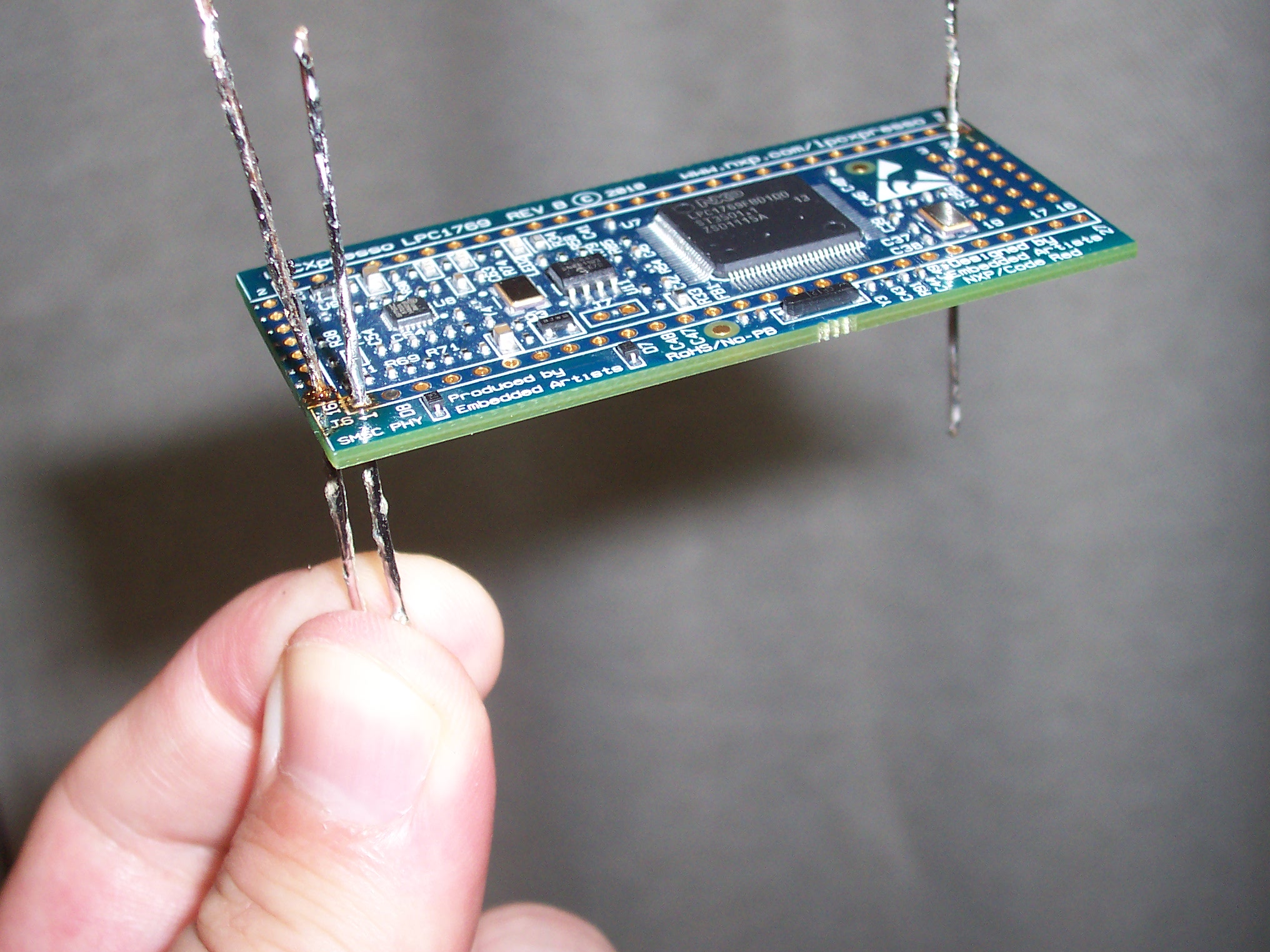

Ground planes are the (horrible, evil) bane of my soldering existence. This board has 3 ground pins. Let's solder them first:

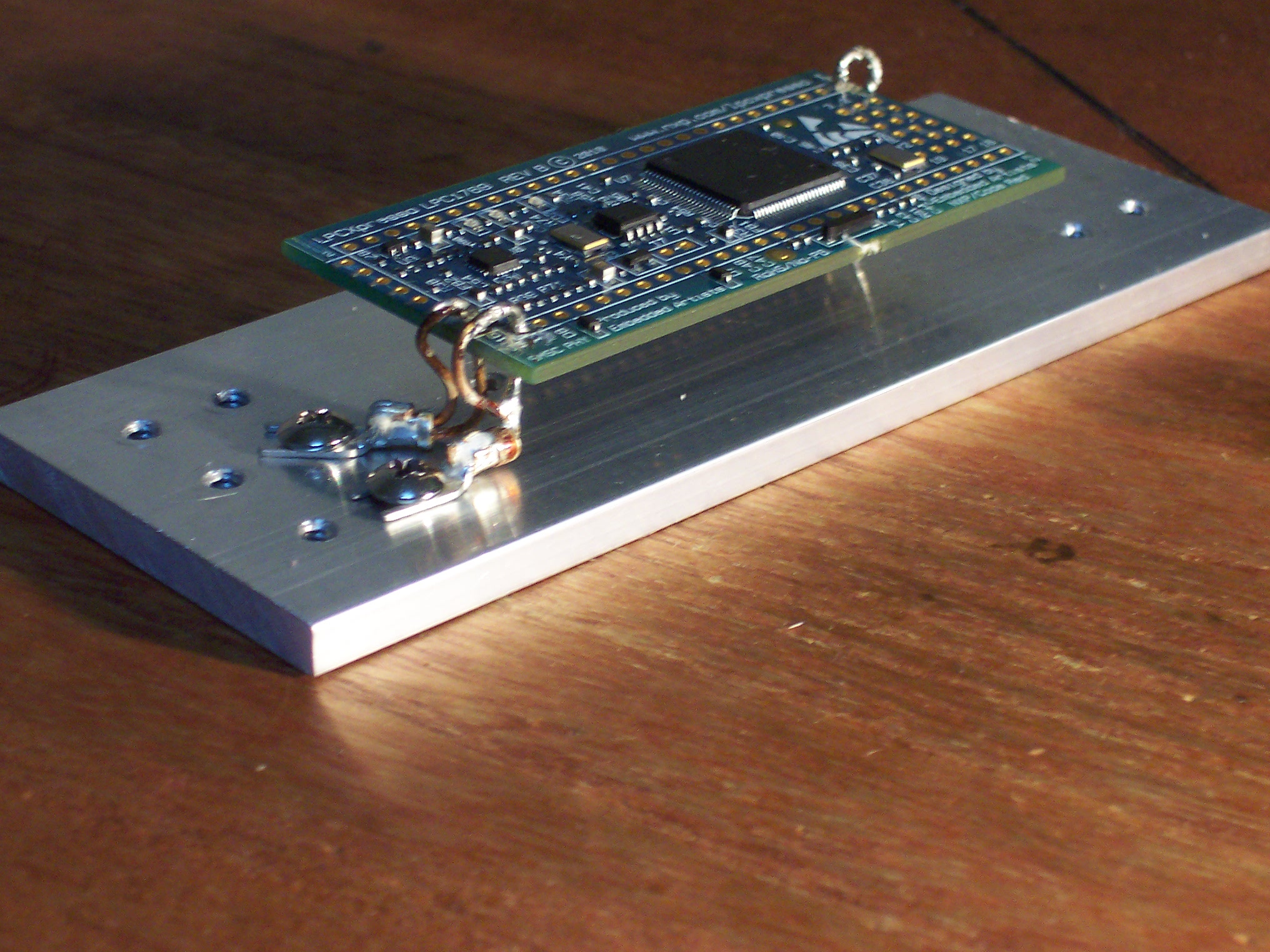

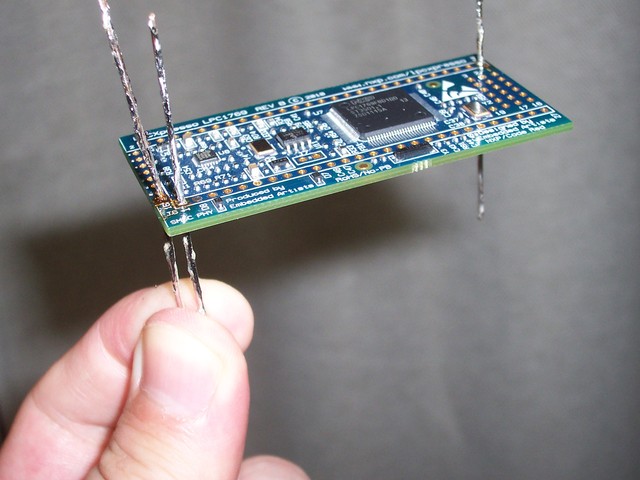

Three ground pins

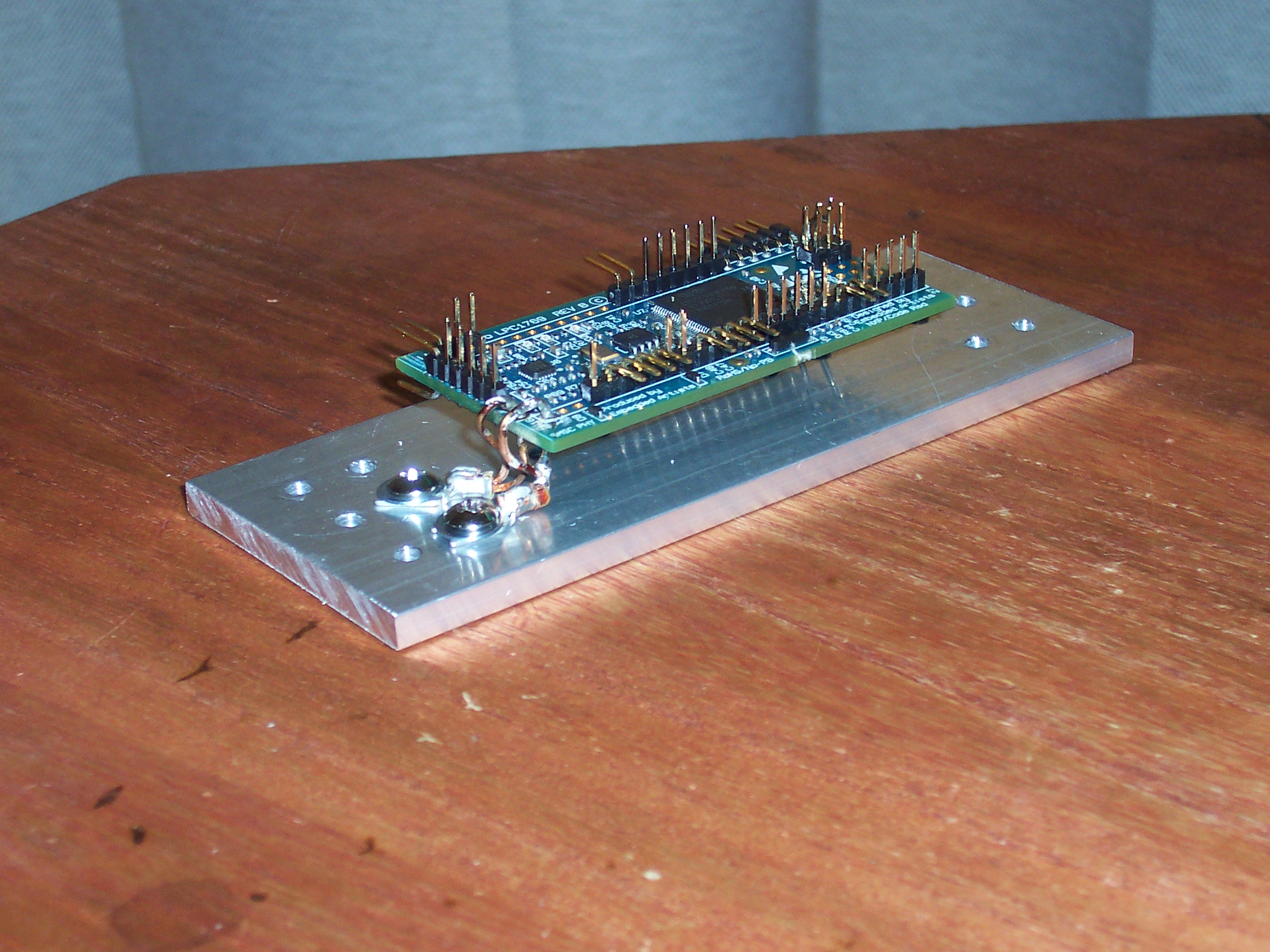

LPCXpresso with most headers installed

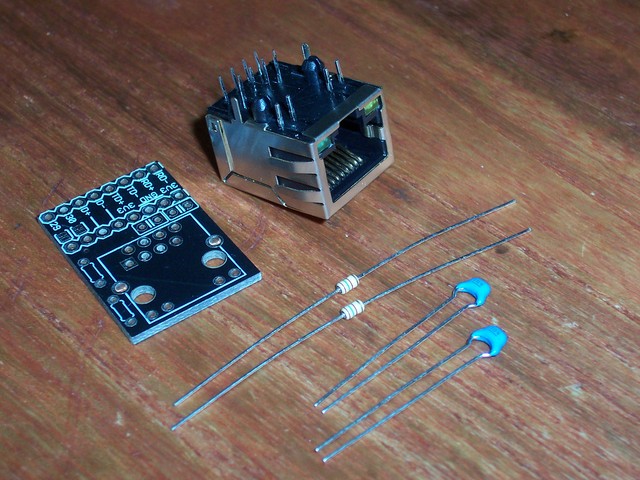

Ethernet kit from Switch Science (some assembly required)

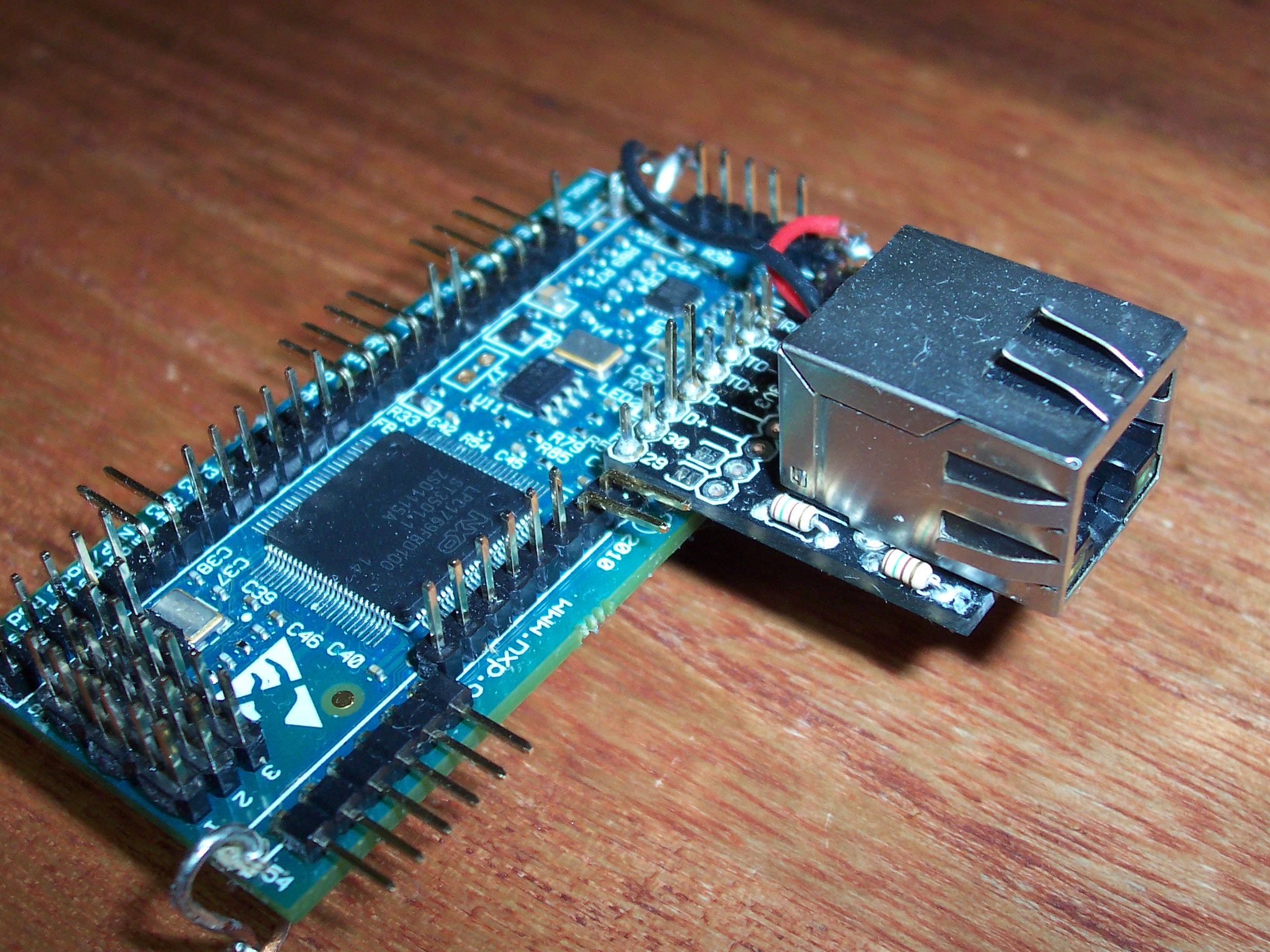

Ethernet (and all other headers) mounted onto the Xpresso

I like to add epoxy in between the two boards, for extra strength:

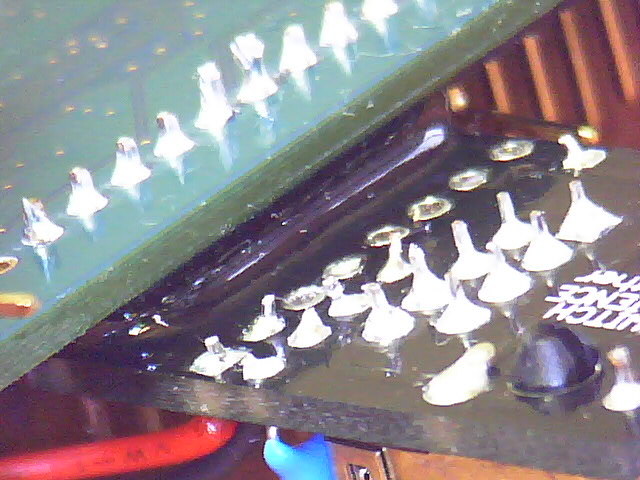

Epoxy between main board and ethernet board.

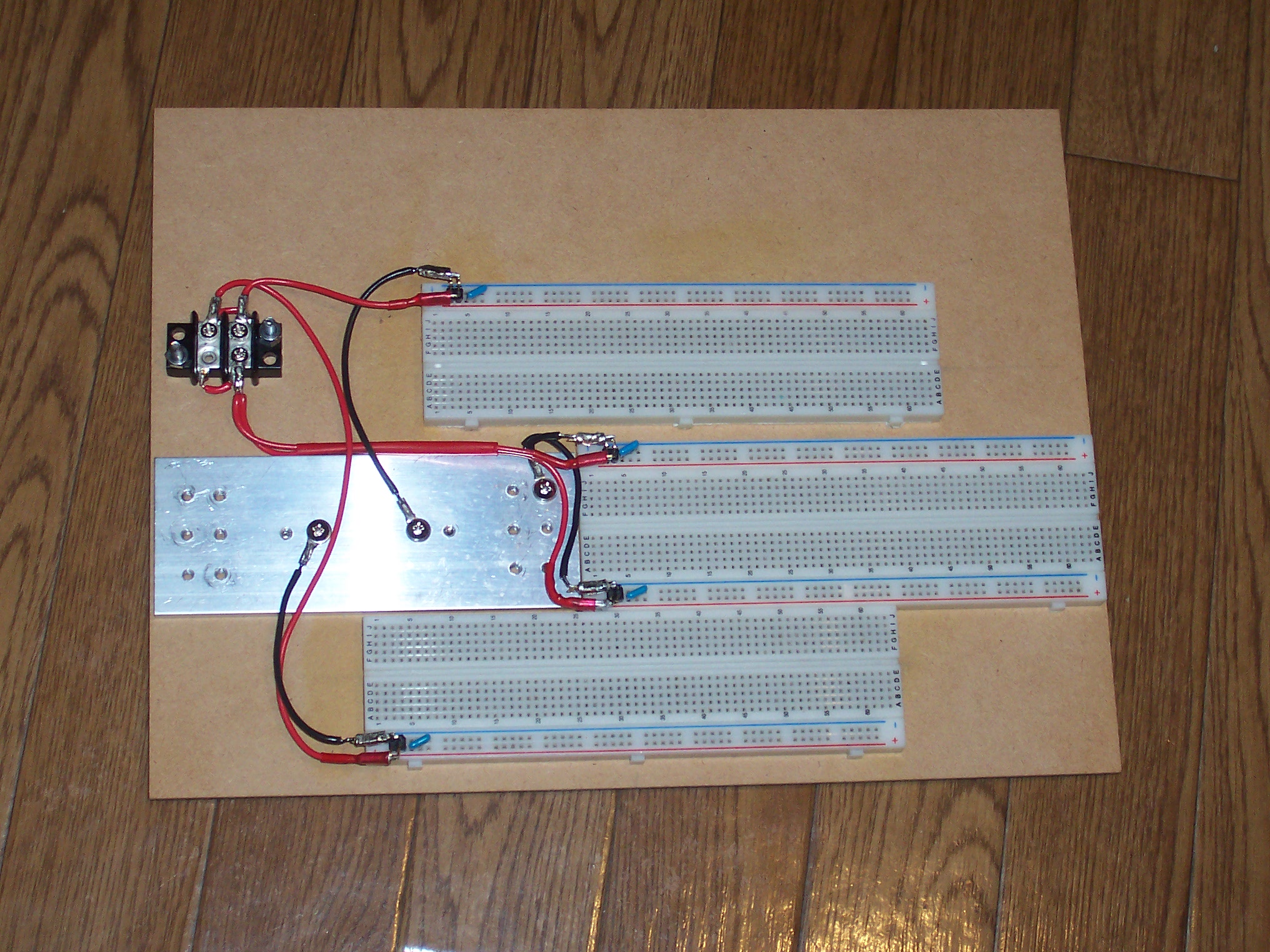

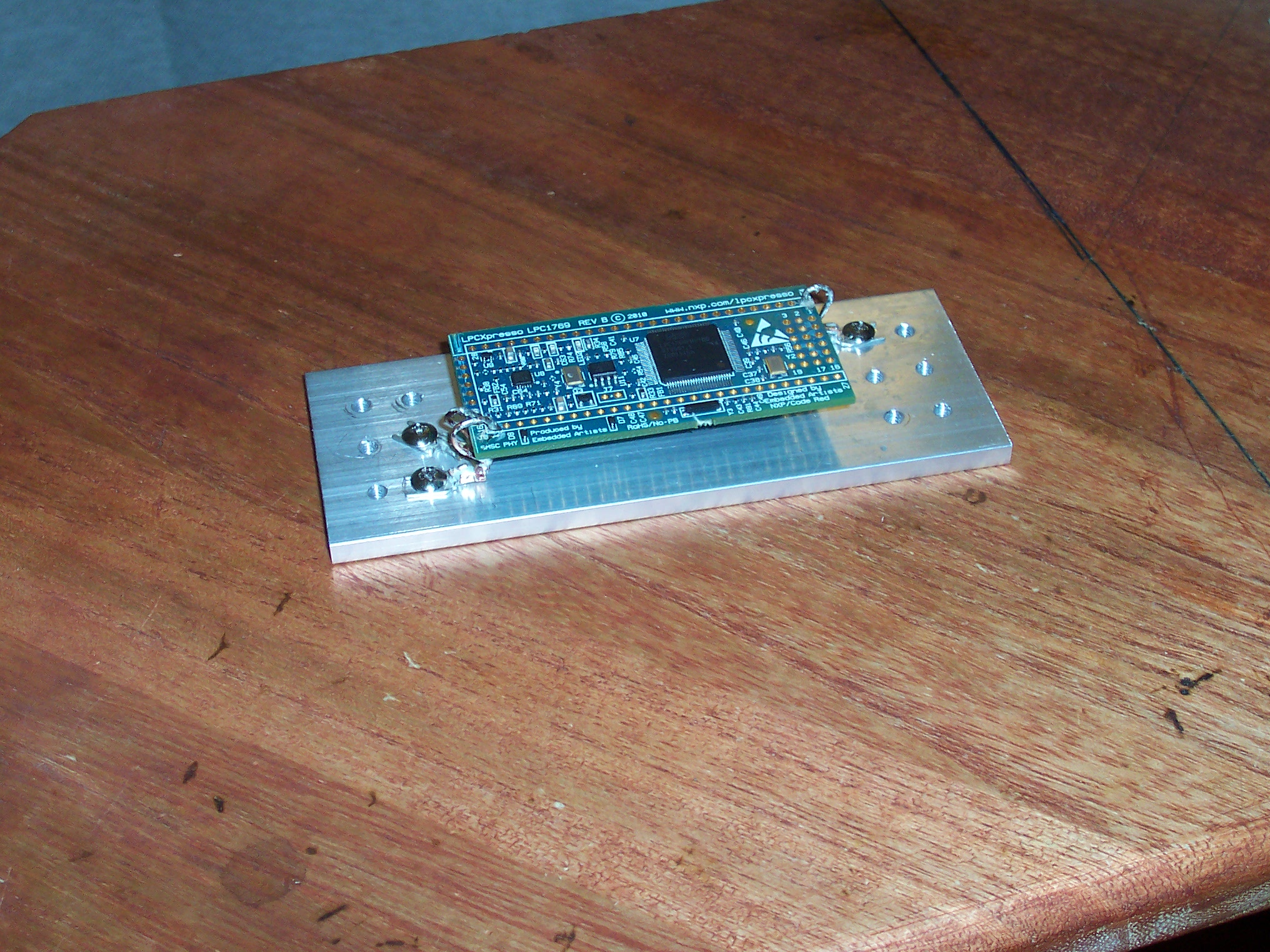

Getting ready to mount the LPCXpresso:

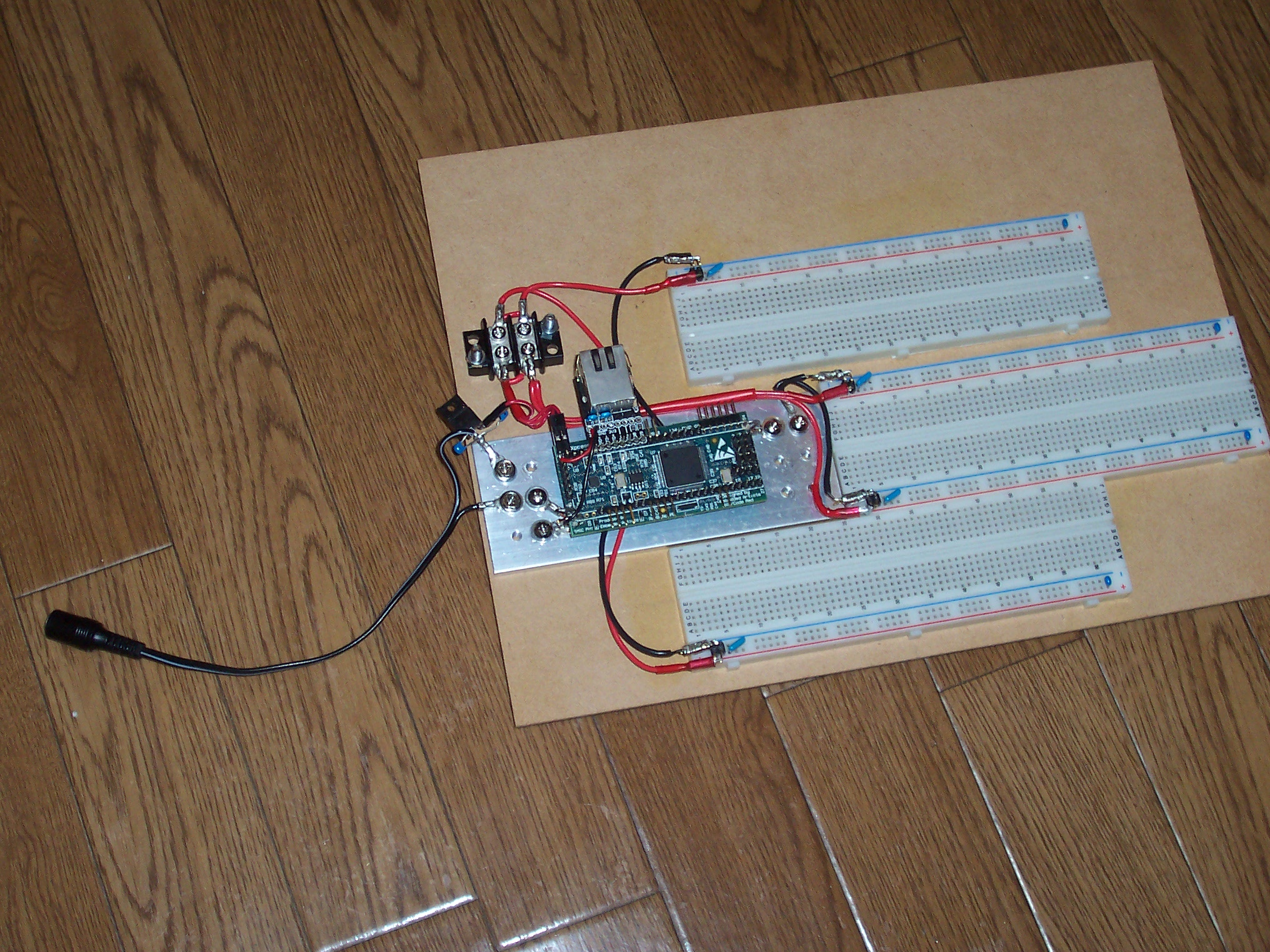

The final board, with LPCXpresso1769

Once you have more than two eFirmatas, it's easy to lose track of which one is which. So I shall christen thee: bluestripe.

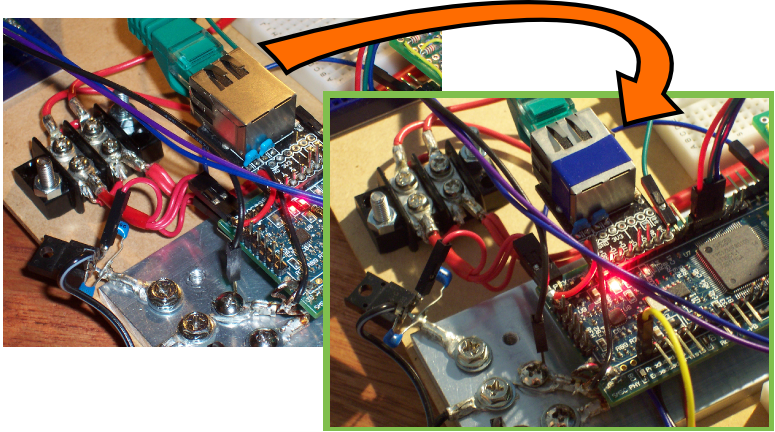

A strip of blue electrical tape, to identify the board.
