eFirmata

Connecting the real world to the digital world.

Introduction

Compatable Hardware:

• mbed
• LPCXpresso 1769
  (from NXP)
• LPC1768-Xplorer
  (from NGX)

Protocols:

• GPOut over UDP
• GPIn over UDP
• PWM over UDP
• Triggered Oscilloscope over UDP
• SPI over UDP

Example Projects:

• RGB lights controlled from a smartphone
• Triggered oscilloscope

Compiler

Installing the Binary

About / Credits / Contact

What is eFirmata?

eFirmata is the protocol and it is the firmware that runs on the mbed.

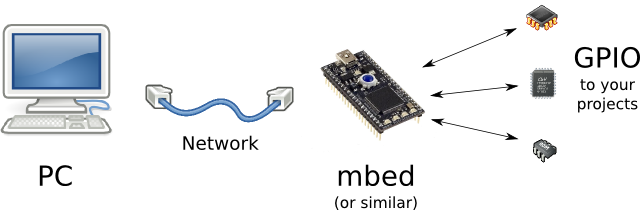

To control your DIY electronic projects, you just send UDP packets to your mbed (running the eFirmata firmware) and that data becomes your output signals. To collect data from your electronics, just read in the UDP packets coming from your mbed. Develop on your own workstation using whatever programming language you choose.

note: eFirmata was inspired by the Firmata project, but we are not affiliated with them and are not compatable with them. Basically, I needed "Firmata, but running over Ethernet", and eFirmata was born.
